    280mm Roll Fingerless Type Single Facer Corrugated Machine

    Ask Lasest Price
    Brand Name : SY-PACK
    Model Number : SY SF-280S
    Certification : ISO9001:2008
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5 Sets/ per Month
    Delivery Time : 30-60 days after down payment
    • Product Details
    • Company Profile

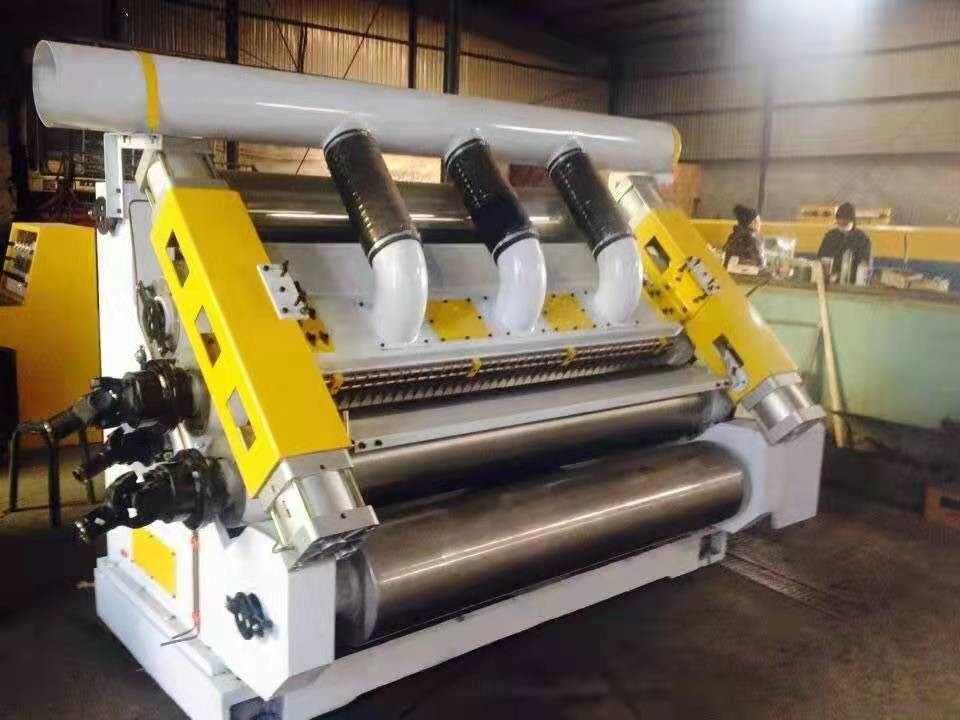

    280mm Roll Fingerless Type Single Facer Corrugated Machine

    SY SF-280S fingerless type single facer


    Product Features:

    1- No need boiler, cardboard quality same with steam heating model

    Product parameters:


    Mechanical speed: 80m/min.
    Effective width: 1400mm- 1800mm.
    Adopt the hood type structure, with high pressure and powerful fan, and the air absorption and silencing equipment.
    Wall cast iron structure, wall thickness 130mm. Independent gearbox, universal shaft drive.
    ► The material of corrugated roller is 48CrMo alloy steel, which is tempered by adjustment, medium frequency quenching, surface polishing and chrome, the diameter of corrugated main roller is phi 280mm, the surface hardness HRC58 degree above.
    Corrugated roller and pressure roller adopt airbag type pressure, cushion shock absorption, long service life.
    Pneumatic control for glue, degumming, gluing roller diameter phi 215mm. After the surface has been polished, it can be treated with the hard chromium plating after the surface of the grooves. The surface of the rubber roller has been polished and treated with hard chromium plating.
    Four sets of electric heat pipes are used to heat and heat the oil, heating fast, without heating furnace, automatic temperature control and control of two groups.
    ModelSY SF-280S
    Temperature range160—200℃
    Air source0.4—0.9Mpa
    Heating methodSteam heating
    diameter of corrugated roller280mm
    operation directionleft or right(determined in accordance with customer plant)
    diameter of pressure roller284mm

    280mm Roll Fingerless Type Single Facer Corrugated Machine
