| maximum(A+B)*2 | 3000mm | the minimum length A | 250mm |
| minimum(A+B)*2 | 900mm | the maximum height D | 1150mm |
| maximum(C+D+C) | 1200mm | the minimum height D | 250mm |
| minimum(C+D+C) | 350mm | Nail tongue width E | 35-40mm |
| the biggest shake cove C | 560mm | Machine width | 4450mm |
| the maximum width B | 1320mm | Machine weight(T) | 25 |
| the minimum width B | 200mm | speed(nail/min) | 800 |
| MaxA | 1320mm | Order | 1-99 |
| Nail distance(mm) | 30-80 | Nailing speed | 120m/min |
| Sticky box speed | 200m/min | Power(kw) | 60 |
The Function And Characteristic
◆ The machine full computer control automatic tuning single, easy
to operate, simple; Can store 1000 nail single;
◆ Screw mixer bottomless with cover box can also be (when
ordering);
◆ 3-5 minutes to adjust size, simple and quick;
◆ Nail head power for the servo motor, mechanical speed: 800
nail/minutes;
◆ Pieces paper department adopts the vacuum adsorption front belt
paper make sure the carton is not skewed; The machine front feeder
belts, belt height can be adjusted separately, increase service
life;
◆ Pieces into the paper with side lapping device can send paper
neatly smooth;
◆ Mixer feeding, feeding speed by PLC automatic control, guarantee
won't appear the cartons nail nail not to come out or bad
phenomenon; QD(Z)J-2200/2600/3200
◆ Mixer feeding machine adopt servo motor control, to ensure that
the nail from the stable and accurate;
◆ This machine design have box plastic function, ensure no scissors
in nailing, neatly not skew; Before and after the machine to ensure
the scissors mouth can't more than plus or minus 2 mm;
◆ In pieces the machine can be double screw, single screw,
strengthen nails, double end screw and single head screw one-time
completion;
◆ The machine adopts computer screen operation, and display the
fault description;
◆ In pieces the machine can be nailed three layer, five layer
carton (statement in advance with order) is required for a seven
layers;
◆ An automatic counting stacking quantitative output in pieces the
machine finally.
◆ Pieces of native baling part for matching.
◆ Mixer machine during normal operation appear skewed, will
automatically stop.

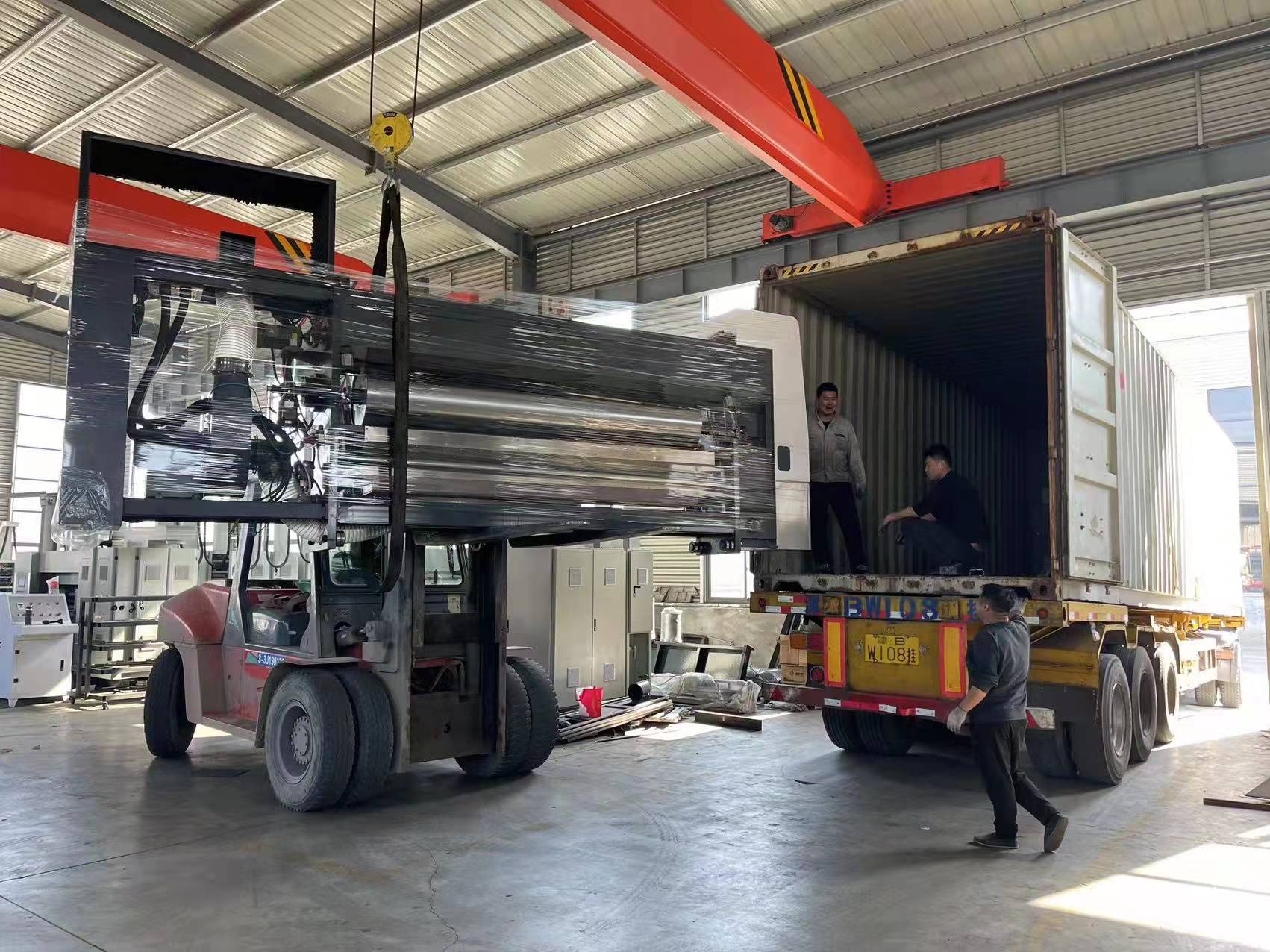

Package
Our company
Hainan Bojun Trading Co.,Ltd is a company that has its own carton
machinery manufacturing plant, which is located between south of
Beijing and north of Jinan. We are specializing in producing
corrugated carboard production line, printing machine, slotting
machine, die cutting machine, flute laminator ect. With more than
10,000 sqm of workshop and 3,00 sqm of office buildings, we have
more than 200 official employees, which consists of our sales team,
after-sales team, production team and scientific research team.
FAQ
Q1: Are you a factory or trading company?
A: We are a manufacturer and have our trading company. Our factory
is specializing in producing carton machinery for over 20 years.
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Dongguan County Hebei Province, which
is the main production site for carton machinery in China.
Q3: How about the quality of the products?
A: We have the best professional engineer and a strict QA and QC
system.
Q4: Can we be your distributor or agent?
A: We are looking for distributors and agents all over the world.
Q5: How is the warranty of the machine?
A: Our products have 12 monthly warranties, including the core
components.
