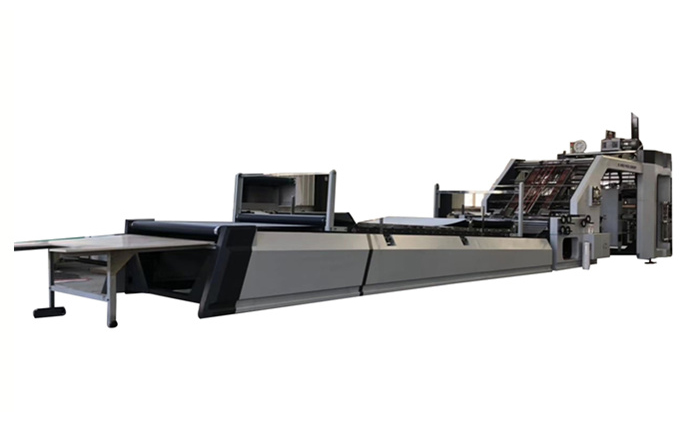

1450G High Speed Fully Automatic Flute Laminator
Max.Speed:12000pcs/h
Model:1450G
Product introduction:
The main function of 1450G intelligent high-speed laminating
machine is to make paper and cardboard fit together so as to
increase the strength and thickness of material or special effect.
Billboards, etc.
The equipment adopts the perfect combination of motion control
system and servo correction and correction system, and controls the
servo motor on both sides of the surface paper to do independent
compensation by using the relative position of multi-group
photoelectric induction base paper, so that the adjustment
equipment can be completed automatically by inputting the size of
the paper. Run and produce.
Technical Data:
Model
| 1450G |
| Max. Sheet Size (W*L) | 1450mm*1450mm
|
| Min. Sheet Size (W*L) | 450mm*450mm
|
| Top paper thickness | 120~600g/m²
|
Bottom sheet thickness
| Corrugated: 0.5-10mm (B, A, AB, E flute, etc.) Paper: > 350g |
| Laminating Accuracy | Corrugated: ±1mm (±0.5mm) Paper: ±0.5mm |
| Max. Speed | 12000p/h 9000m/h |
| Power | 22KW
|
| Dimensions(L*W*H) | 13.5m*2.4m*2.4m
|
| Height of Bottom Paper | 400mm |
| Height of Top Paper | 1800mm
|
| Machine weight |
7000kg
|
Paper mounting accuracy: the standard precision is ±1mm, at a speed less than 9000 sheets
per hour, the accuracy can reach to ±0.5mm;
Glue consumption: glue consumption is generally 25 to 30 grams per square meter,
operator's operation technology and pit type of pit paper will also
affect glue consumption
