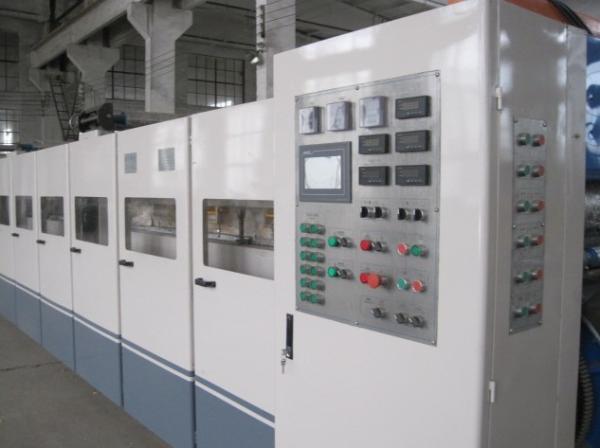

DOUBLE FACER
Structural features:
★ The surface of the heating plate is ground, the width of the hot plate is 600mm, there are 16 heating plates, and the cooling setting is 4 meters. The heating plate is made of a vessel plate, which conforms to the national first-class pressure vessel standard, with a pressure vessel certificate and inspection certificate.
★ The upper conveyer belt rectifies the right and left sides to adopt the pneumatic automatic correction deviation.
★ Heating plate heat transfer pipe temperature control sub-four-segment, with a temperature display.
★ A double cylinder S type cotton belt tensioning device is used for the upper cotton belt.
★ The lower belt adopts pneumatic tension and pneumatic correction.
★ Drive roller coated with attached wear-resistant rubber, showed a herringbone structure, With a high, ensure smooth cardboard output.
★ Main drive motor for frequency conversion motor, low-speed torque, wide speed range, reliable, and easy maintenance.
★ Hot plate internal for partition isolation structure, s-shaped flow of steam,Steam, water separation function significantly improves the utilization of steam.
Technical parameters:
Temperature requirement | 160—200℃ |
Steam pressure | 0.8-1.3Mpa |
Air source pressure | 0.6—0.9Mpa |
Cooling stereotypes length | 4m |
Heating plate quantity | 16 pieces |
Roller diameter parameters:
Upper drive rubber roller diameter:¢700mm |
Lower drive rubber roller diameter:¢400mm |
Former follower with roller diameter:¢215mm |
Back setting belt driven roller diameter:¢215mm |
Platen roller:¢70mm |
Setting roller diameter:¢86mm |
Upper belt tension roller diameter:¢155mm |
Upper roll diameter with detuning:¢130mm |
Entrusted with the roll diameter lower belt:¢130mm |
Lower belt tension roll diameter: ¢130mm |
Note: All the roller surface after grinding are hard chrome plated
Powered motor parameters:
Main drive motor power | 30Kw |
![]() |
