Machine composition and operation principle

1. The automatic gluing machine consists of three parts: paper feeding and gluing part, line pressing and folding part, and correction and counting output part.

2. This machine is made of high-quality steel by welding, careful processing and assembly.

3. Belt leading edge suction paper feeding, accurate and fast.

4. Automatic glue supply with circulating glue, and constantly supply of glue, no need to add the glue manually, which saves time and effort .

5. It is equipped with stainless steel glue-coated wheel which is corrosion resistance, wear resistance and uniform glue-coated, glue saving, its usage amount of glue is about one third of the amount of manually glue.

6. The folding part is equipped with adjustable multi-channel pressing wheel group, which makes the folding of cartons more smooth and the bonding more beautiful and accurate.

7. Stacking correction of counting carton, safe and stable output, accurate and error free, digital control, simple operation, input order without shutdown.

8.The whole machine adopts synchronous belt drive, which greatly reduces working noise.

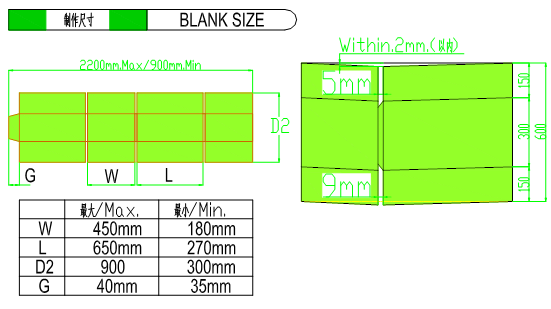

Main Technical Parameters:

The main motor parts of the machine and brands are as follows:

SY-QZD1124 Electric:

NO.	Item	Picture	QTY	Brand
1	touch screen		1	MCGS
2	PLC		1	Delta
3	inverter		2	Delta
4	electric relay		3	Chint
5	Photoelectric switch		4	Hu Feng
6	Switch		9	Mingwei
7	Thermal overload relay		3	Chint
8	circuit breaker		2	Chint
9	Travel switch		4	Hu Feng
10	Contactor		3	Siemens
11	Button		11	Schneider

Note: the above electrical appliances can be customized according to customer requirements.

SY-QZD1124 main motor

No.	Item	Picture	Model	Qty	Place of Origin
1	Reducer		GH18-200-1:15	2	Guang dong
2	Reducer		GH22-200-1:40	1	Guangdong
3	Reducer		GH28-400-1:30	2	Guangdong
4	High Pressure Fan		EHS-629	1	Shanghai
5	Motor		Y132M4-5.5KW	1	Hebei
6	Motor		Y100L1/4-2.2KW	1	Hebei
7	Belt		Seamless Connection	At present, the company mainly adopts Germany xigelin, supplemented by Shanghai products. The optional manufacturers are Shenzhen xibeck, Tianjin liyangze and Germany Senli
8	Wall		20mm steel plate
9	Bearing		Harbin bearing is mainly used, supplemented by Zhejiang Wanxiang and Shanghai Xinling. (international famous brands such as NSK, IKO and FAG can be purchased according to the user's requirements)
10	Nylon Wheel		Japan

Hainan Bojun Trading Company Limited has its own manufacturing plant for producing carton machinery equipment. The plant was built in 1999 and is located in Dongguang County, Hebei Province, which is the biggest production base of carton machinery in China. We are specializing in producing corrugated cardboard production lines, printing machines, slotting machines, die-cutting machines, flute laminators, etc. With more than 10,000 sqm of the workshop and 3,00 sqm of office buildings, we have more than 200 official employees, which consist of our sales team, after-sales team, production team and scientific research team.

The excellent product R&D team, the stable quality assurance system, high degree of specialization and rich production experience make us available to meet different demands of clients. Over years, we have won much trust and praise from clients at home and aboard. With the spirit of “Keep moving, casting quality”, we will continue to serve our clients with sincerity and high efficiency.
